I. Main Technical Parameters:

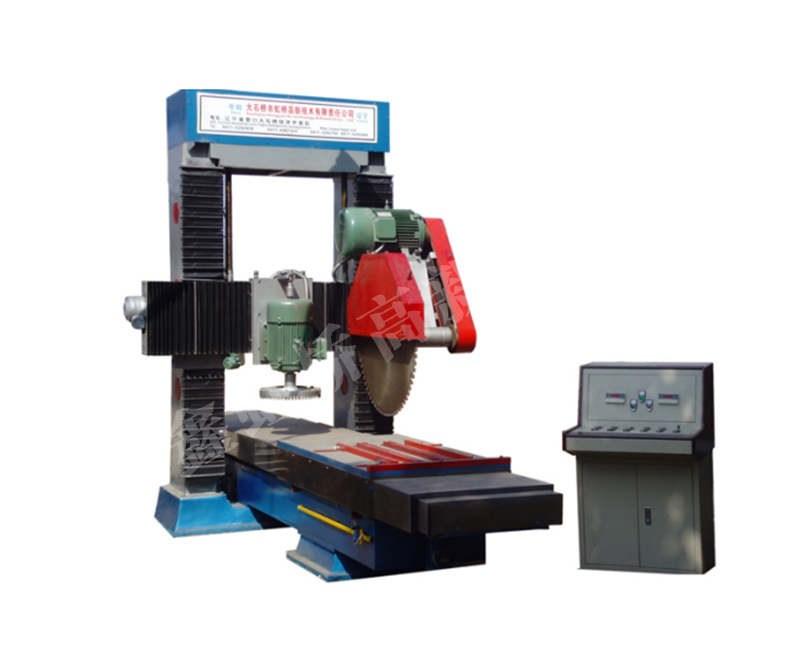

1. Model: HQ-LM1000 (B)

2. Power Supply Voltage: 380 V

3. Motor Power: Cutting Spindle: 22 KW

4. Cutting Rotation Speed: 1440r/min

5. Track Length: 2700mm

6. Trolley Table: 800×1500mm

7. Saw Blade Diameter: ф1400mm

8. Brick Cutting Precision: 0—0.3mm

9. Transmission Working Mode: Electric adjustment for head lifting, left and right travel, and stepless speed regulation travel of the table

10. Equipped with reasonable clamps according to brick types

11. Each Travel Mechanism: The moving distance is indicated by a digital display meter (Display Precision: 0.01mm)

12. Each guide rail is equipped with a reasonable dust cover

13. Equipped with an automatic lubrication system

14. The whole machine adopts an integrated structure
